Parameter |
Options & Notes |
|
Product Type |

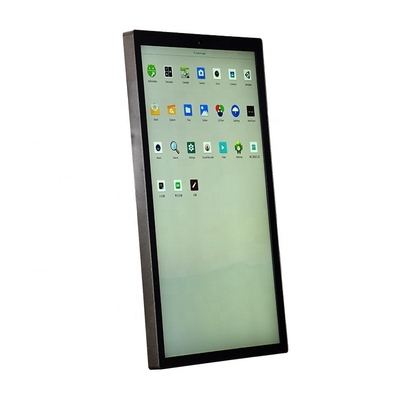

CTP TFT-LCD Table Top Touch Screen |
|
Screen Size (Diagonal Inches) |
Custom size |
|
Aspect Ratio |
16:9 |
|
Overall Dimensions |
516 x 311 x 37.9 mm |
|
Active Area |
476.1 x 267.8 mm |
|
Performance |
|
|
Resolution |
1920 x 1080 |
|
Brightness |
250 cd/m² |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle (U/D/L/R) |
89/89/89/89 |
|
Touch |
10-point Capacitive |
|
Interface |
|
|
Touch Interface |
USB 2.0 |
|
Input Video Format |
HDMI, VGA, DP |
|
Input Frequency |
TBD |
|
Electrical |
|
|
Power Supply |
External DC Adaptor (optional) |
|
Power Jack |
Coaxial; internal diameter 2.1mm; external 5.5mm; depth 10.0mm |
|
Power Consumption (typical) |
TBD |
|
Reliability |
|
|
Operating Temperature |
0 C to +50 C |
|
Storage Temperature |
-20 C to +60 C |
|
Relative Humidity |
10 – 90% RH Non-Condensing |
| Embedded Touch Module | Extra Large Touch Panel | Optically Bonded Touch Display |
| PCAP Touch Panel | Resistive Touch Panel | Touch Display Module |
| Parameter | Options & Notes | |
| Screen Size(Diagonal Inches) | PACP 7"-86" / Resistive 7"-10.4" | |
| Monitor Type | Touch / Non-Touch | |
| Operating System | Linux,Windows XP,7-10,Linux, iSO, Android | |
| Optional Functionality | Camera,WiFi,Bluetooth,etc. | |
| Enclosure | ||
| Frame Style | Open Frame,Closed,Embedded | |
| Mounting | VESA,Side,Flush,As per customer requirement | |
| Enclosure Material | Steel,Aluminum,Plastic - ABS | |
| Display | ||
| Brands | BOE,LG,Innolux,Tianma,As per Customer,Requirements | |
| Backlight | 200 - 2000 nits | |
| Enhancements | UV / IR Filtration,AG, AR, AF, Privacy Filters,etc, | |
| Interface | HDMI, USB, Serial, VGA |
Industrial Medical Gaming
Education & Meeting Tech Marine Automotive
|
1.How Do I Choose the Right HMI Technology for My Project? |
|
We usually start with a brief project briefing with the following information: |
|
|
|
- Product end application & functionality |
|
- Any drawings or specifications |
|
- Is this a new product or a replacement component? |
|
- What type of testing requirements or certifications do you need to meet? |
|
|
|
With this briefing (or even before – our team can walk you through the process), contact one of our sales engineers to schedule a discussion on your product’s HMI needs.
|
|
2.What Standard Product Sizes or Configurations Do You Have Available? |
|
We offer standard PCAP touch panels, touch controllers and our touch display modules; for more information please contact our sales team. |
|
3. How Long Does a Custom Development Project Take? |
|
If client end-use and certification requirements are clear, a product solution can be designed in 2-3 days. However, more complex products could require additional back and forth. |
|
|
|
While the tooling and sample period are usually short (20 - 30 days), depending on how many rounds of samples are required, sample verification can take several months to a year. |
|
4. What Affects Touch Panel Cost? |
|
This depends on a variety of factors, but some of the most important are below: |
|
|
|
·Panel size – in general, the bigger, the more expensive, though there are multiple factors at play (yield, equipment size, components). |
|
·Purchase Volume – in general, the more you purchase, the lower the price |
|
·Customization – cover lens customization and enhancements such as anti-glare, anti-reduction, EMC filters and others can increase the cost considerably. |
|
·Touch IC Selection – Different ICs have different levels of performance vs cost. |
|
|
