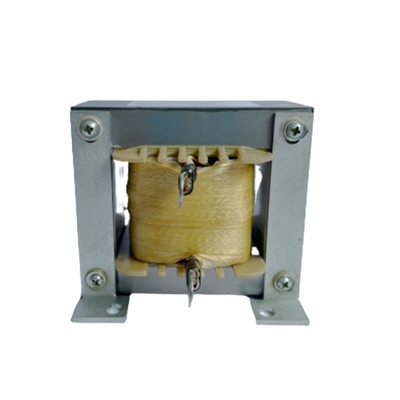

Name: 3 Amp 12.0mh 460V 60Hz AC Line Output Single Phase Reactor For Motor 0.3-14 kVar
Brand: 3 Amp 12.0mh 460V 60Hz AC Line Output Single Phase Reactor For Motor 0.3-14 kVar
SKU: DCL-3A/12.0 Mh
Rating: 4.5 (137 reviews)

풍모 갤러리 제품 설명 따옴표를 요구하십시오

풍모

제품 사양

Model Number: DCL-3A/12.0 Mh

Rated Voltage: 480-525V

Rated Current: 1-110A

Capactiy: 100, 5-100 kVA

Product name: HARMONIC FILTER REACTOR

Reactive Capacity: 0.3-14 kVar

Reactance Rate: 6-14%

Terminal Voltage: 15-45V

Inductance: 0.15-25 mH

기본 정보

Model Number: DCL-3A/12.0 Mh

결제 및 배송 조건

Packaging Details: Wooden box or customized

Supply Ability: 10000 Piece/Pieces per Day

제품 설명

Products Description

Reactor/Inductor

Capacitors are often affected by harmonic currents when performing capacitive reactive power compensation, so as to avoid harmonic currents and voltage surge voltage and current surges, causing capacitor damage and reducing power factor. Harmonics, protect capacitors, avoid a small number of impulse voltages, currents, and harmonics voltages, improve power quality, improve system power factor, and extend capacitor service life

FEATURE

Reactors have the feature of high linearity, high over-current capacity and low losses. Vacuum impregnation by special resin material provides better insulation function, high voltage stress, low noise and long lifetime. The number and position of air gaps are selected in order to minimize losses in magnetic core and windings. Limbs, yokes and air gaps are blocked by adhesives and pressing elements designed to reduce acoustic noise. Reactors are equipped with thermal protection to prevent over-heating.

The reactors are designed with natural air cooling. All products are passed by EU Low Voltage Directive Certification.

1. The power supply to other equipment has obvious interference (interference, overvoltage) 2. Voltage imbalance between power supply phases > 1.8% of rated voltage 3. Very low impedance line (power transformer for frequency converter rating more than 10 times) 4. A large number of frequency converters installed on a line to reduce line current 5. Use COS <φ (power factor) to correct capacitance or power factor correction unit

Standard	EN60076-6, EN 61558-2-20	Rated Voltage	230V to 690V
Dielectric test	50HZ 3KV ,60s	Rated Frequency	50HZ/60HZ
Cooling method	natural air	Certification	CE, TUV
Ambient temperature	-25 to +50 ℃	Elevation above seal level	≤2000m a.s.l
protection Class	IP00 indoor mounting	Inductance tolerance	0±5%
Blocking factor	5%---14%	Linerity	1.55--2.2ln
Insulation Class	H	Max humidity	95%
Winding material	Copper/ Aliuminum	Thermal protection	135℃ normally closed switch

Production Details

Reactor for USA

0.15mH 0.2 mH 0.25mH 0.3mH 0.4mH 0.5mH 0.8mH 1.25mH 1.5mH 3mH 12mH

Related Product

Company Profile

GREEN ENERGY ELECTRIC Group is located in Hefei City, Anhui Province, near Shanghai, with more than 10 years of professional manufacturing experience, specializing in the production of voltage stabilizer/voltage regulators, isolation transformers, voltage transformer, voltage converter, reactor, inverter and other electrical equipment class products.

Since its establishment, the company has insisted on taking science and technology as the guide and backed by strong technology for many years, actively introducing foreign advanced technology, continuously improving and perfecting products, professional management, and the products sell well all over the country. Some products are exported to the Philippines, Indonesia, Thailand , Italy, the United Kingdom, the United States, Canada, Africa and South American countries, and are well received by customers.

We can do OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) for all customers. Under normal circumstances, orders with small quantities can be produced and delivered within 10 days. Orders with large quantities will take about 25 days to deliver.

Welcome to come to consult and purchase！

Package & Delivery

Packaging: Wooden case or according to client's requirements

The requirements for the making and reinforcement of packing boxes were strictly in accordance with the international standards.

Shipping: Land transportation/Ocean transportation/Express
Our products have been shipped all around the world, with an extensive logistic network, we provide the best transportation option for our clients.
Over 20 years of business experience makes us pack well and deliver fast, satisfying our customers all over the world!

FAQ

Q1. What is the Guarantee? A1: Two years (for free) from the date of B/L. Besides, any of the spare parts can be supplied all the time, that is, during the guarantee period and after the guarantee period. Important: (1). The efficiency of our Voltage Regulators / Stabilizers are 90% to 95% (some series of them reaches 95%), please don’t let them work overload! (2). Please make sure that all the electric wires are connected correctly according to the electric diagram Q2. What's the payment terms? A2: We accept LC, T/T, PayPal, Western Union, Money Gram(Small-amount payment). Q3. How's the delivery time ? A3: Usually it will take about one weeks for production. Depending on the product, the quantity is different, and the specific production time is different, please consult the staff for details. Q4. Can put our logo on product? A4: Yes, it is! Our products can be Customized. We can design and produce according to our customers’ specific requirements. Q5. What is the MOQ? A5: For the small capacity products (Automatic Voltage Regulators/Stabilizers) of the default configuration, it is 10 sets. For the big capacity products, it is 1 set. Q6. What is the standard of package? A6: For the small capacity, it use carton, but for big capacity, we should use strong plywood box for protection. Q7. Could you offer Form A, Form B or C/O ? A7: It totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate. Q8. What kind of certificate you have ? A8: Our company already achieve ISO9001, and for products, we have SGS, TUV, CE, etc. Q9. Where is your market? A9: Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East,Eastern Asia, Western Europe and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
