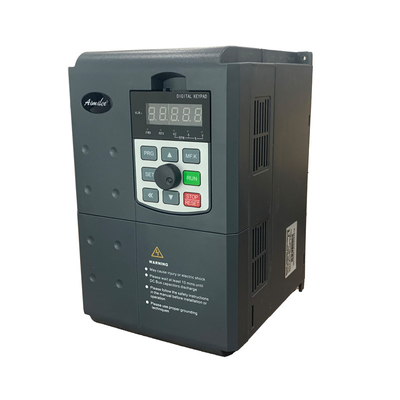

Item | Specifications | ||
Input | Rated voltage, frequency | single-phase:220V±15%,50Hz/60Hz,frequency:±5% three-phase:380V±15%,50Hz/60Hz,frequency:±5% | |
Rated current | Refer to the rating (Chart 2-2) | ||
Output | Voltage | 0～input voltage | |
Frequency | 0～400Hz | ||
Current overload capacity | 150% Rated current for 1min,180% Rated current for 10s，200% Rated current for 1s | ||
Standard functions | Modulation Mode | The magnetic flux vector PWM modulation | |
Motor type | Induction motors | ||
Speed range | Closed-loop vector (asynchronous)1:5000 | ||
Open-loop vector 1:200 V/F1:100 | |||
Startup torque | Closed-loop vector (asynchronous)0Hz 180% | ||
Open-loop vector 0.25Hz 150% V/F0.5Hz 150% | |||
Speed stability | Closed-loop vector (asynchronous)0.02% Open-loop vector 0.2% V/F0.5% | ||
accuracy | |||
Velocity pulsation | Closed-loop vector (asynchronous)0.1% Open-loop vector 0.3%；V/F0.5% | ||
Frequency accuracy | Digital setting: Max frequency×±0.02%；Analog setting: Max frequency×±1% | ||
Torque boost | Fixed boost Customized boost 0.1%–30.0% | ||
V/F curve | Straight-line curve, 4 kinds of users set V/F curve,A variety of torque characteristic curve | ||
Ramp mode | Two kinds of way:Straight-line ramp、S-curve ramp Four groups of acceleration/deceleration time with the range of 0.1～3600s | ||
DC braking | DC braking frequency:0.00～60.00Hz Braking time: 0.1～30.0s | ||
Jog | Jog frequency range:0.10～60.00Hz Jog acceleration/deceleration time:0.1～60.0s, Jog time interval can be set | ||
Multistage speed operation | Through the built-in PLC control or terminal control 16 segment speed operation | ||
Onboard PID | It realizes process-controlled closed loop control system easily. | ||
Automatic energy saving operation | Automatic optimization control according to the load situation, achieve energy-saving operation | ||
Auto voltage | It can keep constant output voltage automatically when the mains voltage changes. | ||
regulation(AVR) | |||
Speed tracking start function | Rotation of motor no impact smooth start | ||
Automatic current limiting | Current limit automatically during the operation, prevent frequent over-current fault tripping | ||
Textile pendulum frequency | Textile pendulum frequency control, the realization of center frequency adjustable frequency function | ||
Fixed-length control | Through the terminal count input function, the realization of fixed length control | ||
Busbar voltage over-voltage suppression | Real-time dynamic control of busbar voltage, prevent the frequent overvoltage fault tripping | ||
Power dip ride through | The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time. | ||
Run control | Bind function | Bind the run command channel and the frequency of a given channel, synchronous switch | |
Run the command channel | Operation panel control command channel、terminal control command channel、Modbus/MXLink communication command channel. Can switch through a variety of ways. | ||
Given frequency channel | Keybord setting,analog voltage,Analog current setting, simple PLC setting, Multistage speed setting, process of the closed loop setting、Modbus/MXLink communications setting. Can switch through a variety of ways. | ||
Protection mode | Motor short-circuit detection at power-on, input/output phase loss protection, overcurrent protection, overvoltage protection,undervoltage protection, overheat protection and overload protection. | ||
Auxiliary frequency source | It can implement fine tuning of auxiliary frequency and frequency synthesis. | ||
Peripheral interface | Analog input | 3 roads analog signal input 2 roads 0～10V/4～20mA,1 road differential input -10～+10V | |
Analog output | 2 roads analog signal output 0～10V/4～20mA, Can realize the set frequency, output frequency and so on the analog output. | ||
Digital input | 8-way multi-function input terminals,X8/DI high-speed pulse input terminals, maximum support (50KHz) | ||
Digital output | 2 ways multifunctional output terminals,Y2/DO high-speed pulse output terminals, maximum support (50KHz) | ||
2 ways relay output | R relay output MA NC,MB NO,MC COM T relay output M1 NC,M2 NO,M3 COM | ||
Configurable PLC card | 6 ways input terminals, 4 ways output terminals; basic instruction processing speed is 0.084 us/step, comprehensive instruction processing speed for step 1 k/ms, program capacity of 12 K steps | ||
Communication | 485 communication | Standard 485 difference signal, support the Modbus protocol and MXLink protocol | |
Panel | LED display | It can display a set frequency, output frequency, output voltage, output current and other parameters | |
Key lock to choose | By setting the buttons can change some or all of the lock, in order to prevent wrong operation | ||
Multifunctional MK key | Can realize point, free downtime, running direction switch, menu to switch, command channel switch | ||
Outer join | For 485 interface between panel and control panel, built-in voltage chip, more than 100 m distance connection can be realized | ||
Other | Installation location | Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapour, drip or salt. | |
Ambient temperature | -10℃～50℃,de-rated if the ambient temperature is more than 40℃ | ||
Altitude | Lower than 1000 m | ||
Humidity | 5%～95%RH, without condensing | ||
Vibration | Less than 5.9m/s2(0.6g) | ||
Storage temperature | -40℃～+70℃ | ||
